Basic Info.
Model NO.
C3030
Support Card Number
All in One
Material
Copper
Gender
Male
Certification
CTI
Application
Aerospace Projects, Industrial Projects, Railway
Poles
2-24
Pin
Phosphor Bronze
Housing
Plastic
Classification
Wired Broadband Connection
Transport Package
PE Bag, Tray, Tape & Reel, Box
Specification
3.0mm pitch
Origin
Dongguan China
HS Code
8536909000
Production Capacity
50000PCS/Day
Product Description

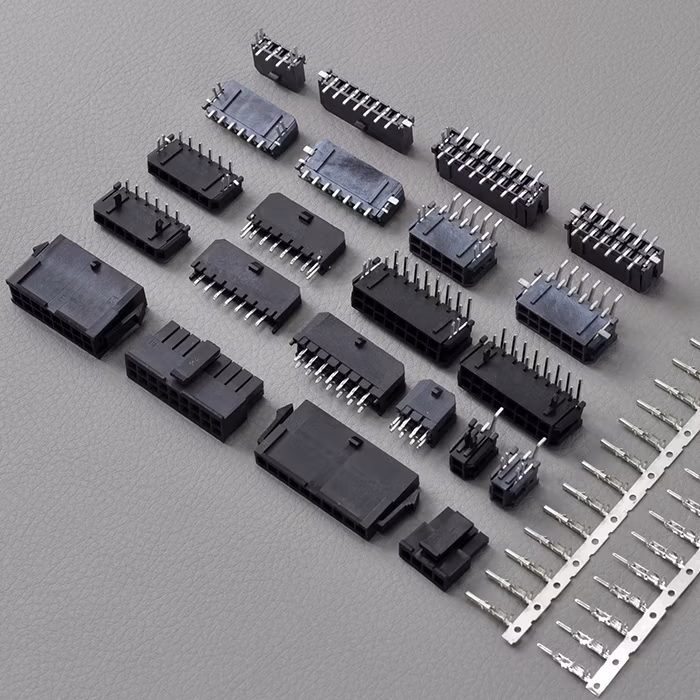

TE 5-794619-2 Rectangular Power Connectors, Header, Plug, Wire-to-Board, 22 Position, For Printed Circuit Board, UL 94V-0, Micro MATE-N-LOK
Quick Detail:
Specifications:
Descriptions:
Micro Mate-N-LOK 3.0 connectors are a 3.00mm pitch high-density, low-power connector system available in wire-to-wire and wire-to-board configurations with SMT and through-hole options and up to 5.0A to meet low- to mid-range power application needs.
This serial connector can be equal Molex,TE, AMP JST, Digikey,Civilux ect famous parts sell at short lead time 5-7days.
Free sample!
Customized wire harness, cable assembly are welcomed!
Application:
Gaming Machines
Printers
Refrigerator
Scanner
Security Systems
Vending Machines
Washing machine
Dryers
Freezers
Quick Detail:
| Name | 22POS,MICRO MNL,RCPT HSG Connector | Application | PCB,Wire-to-Board,Wire-to-Wire |
| Connector | Tyco Micro MATE-N-LOK | Circuits/poles/pins | 2~24 |
| Pitch | 3.0mm | Certificate | ROHS, UL,HF |
Specifications:
| Housing | Equivalent of TE Tyco AMP Micro MATE-N-LOK receptacle 1-794617-0 plug housing |
| Crimp terminal | 43030 Male and female, tin plated |
| Header/wafer | 4-794625-0 SMT, Thru/DIP; Straight angle/Right angle |
| Pitch Centerline | 3.0mm |
| Circuits/poles/pins | 2~24 |
| Number of Rows | Single or Dual |
| Current rating | 5A AC,DC |
| Voltage rating | 250V,AC,DC |
| Wire range | AWG20~24 |
Descriptions:
Micro Mate-N-LOK 3.0 connectors are a 3.00mm pitch high-density, low-power connector system available in wire-to-wire and wire-to-board configurations with SMT and through-hole options and up to 5.0A to meet low- to mid-range power application needs.
This serial connector can be equal Molex,TE, AMP JST, Digikey,Civilux ect famous parts sell at short lead time 5-7days.
Free sample!
Customized wire harness, cable assembly are welcomed!
Application:
Solar power
anti-theft devices
alarm control panels, radio devices,anti-aggression transmitters, lan-wifi-gsm interfaces, car and pocket GPS tracker,smoke generator system, software and management, integrated video systems, X-Accessories
Militar y Commercial Off-the-Shelf (COTS)
Alternative Energy Source
Electronic taximeters
Payments Management
Computer
Mainboard
PCB
LCD
Display
LED lamp
Led lightingVending Machine, Refrigeration Equipment, Clothe Dryer, Coffee Machine, Treadmill
Consumer
White goodsGaming Machines
Printers
Refrigerator
Scanner
Security Systems
Vending Machines
Washing machine
Dryers
Freezers
